Gross Weight Scale

Description Of Gross Weight Scale

There is no weighing hopper at the bottom of the charging machine of the gross scale packaging machine, and the material is directly sent to the packaging bag, and the weighing system is used to weigh the material and the packaging bag together.
The combination of the product with the conveyor and the sewing machine is a semi-automatic packaging equipment with prefabricated pocket opening. After manual bagging, the packaging machine automatically completes the bag mouth clamping, material filling, material bag release, and the bag mouth is sealed after manual finishing

Feature Of Gross Weight Scale

1. According to the material can choose a variety of charging structure, the material and packaging requirements have a wide range of adaptability;
2. Low requirements for the material bag, can be applied to various materials and forms of open material bag;
3. The equipment is simple in structure, easy to operate, easy to maintain and occupy small space.

Parameter Specification Of Gross Weight Scale

1. Packing capacity: up to 300 bags/hour.
2. Packing weight: 10~50 kg/bag.
3. Accuracy: ±0.2%

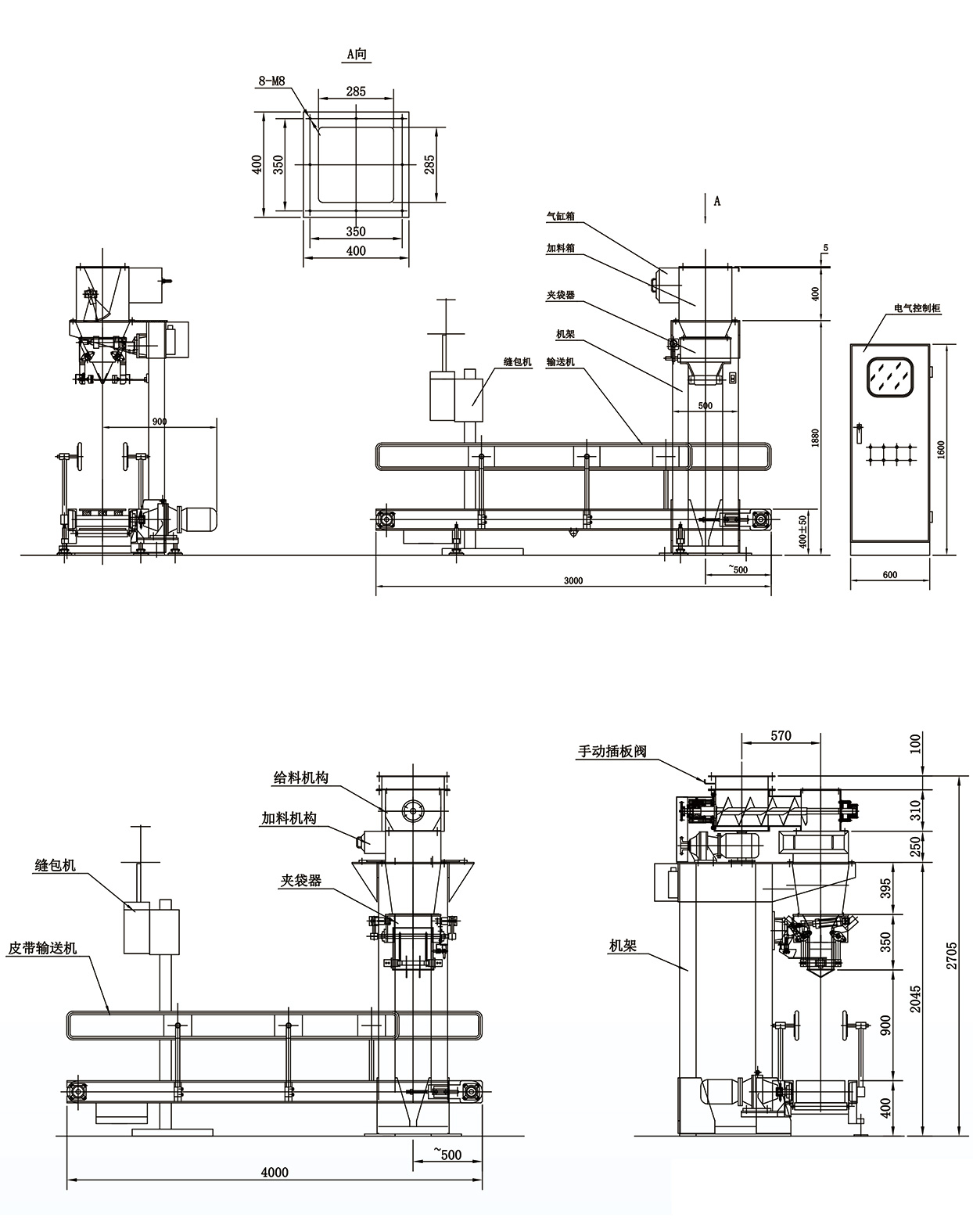

Equipment layout diagram Of Gross Weight Scale
