Single-Scale Packing Machine

Description Of Single Scale Packing Machine

Net weight quantitative packaging scale (single scale) : After the material is weighed in a single weighing bucket, it is then loaded into the packaging bag, which improves the measurement speed and accuracy. The product can be used independently, or can be fully integrated into the packaging production line of food, feed, pet food, agriculture, chemical, pharmaceutical or mineral industries, etc. The product is combined with the conveyor and the sewing machine to become a semi-automatic packaging line. Products with automatic bagging machine, automatic folding and sewing machine, shaping conveyor, automatic palletizing machine is a set of automatic packaging and palletizing line

Feature Of Single Scale Packing Machine

1. Durable after structural optimization.
2. According to the material can choose a variety of charging structure, the material and packaging requirements have a wide range of adaptability;
3. High precision, good stability and high efficiency.
4. The weighing and packaging system can carry out corresponding data management, analysis, statistics, etc.

Parameter Specification Of Single Scale Packing Machine

1. Packaging capacity: up to 600 bags/hour (cylinder control). Max. 900 bags/hour (servo control)
2. Packing weight: 10~50 kg/bag.
3. Accuracy: ±0.2%

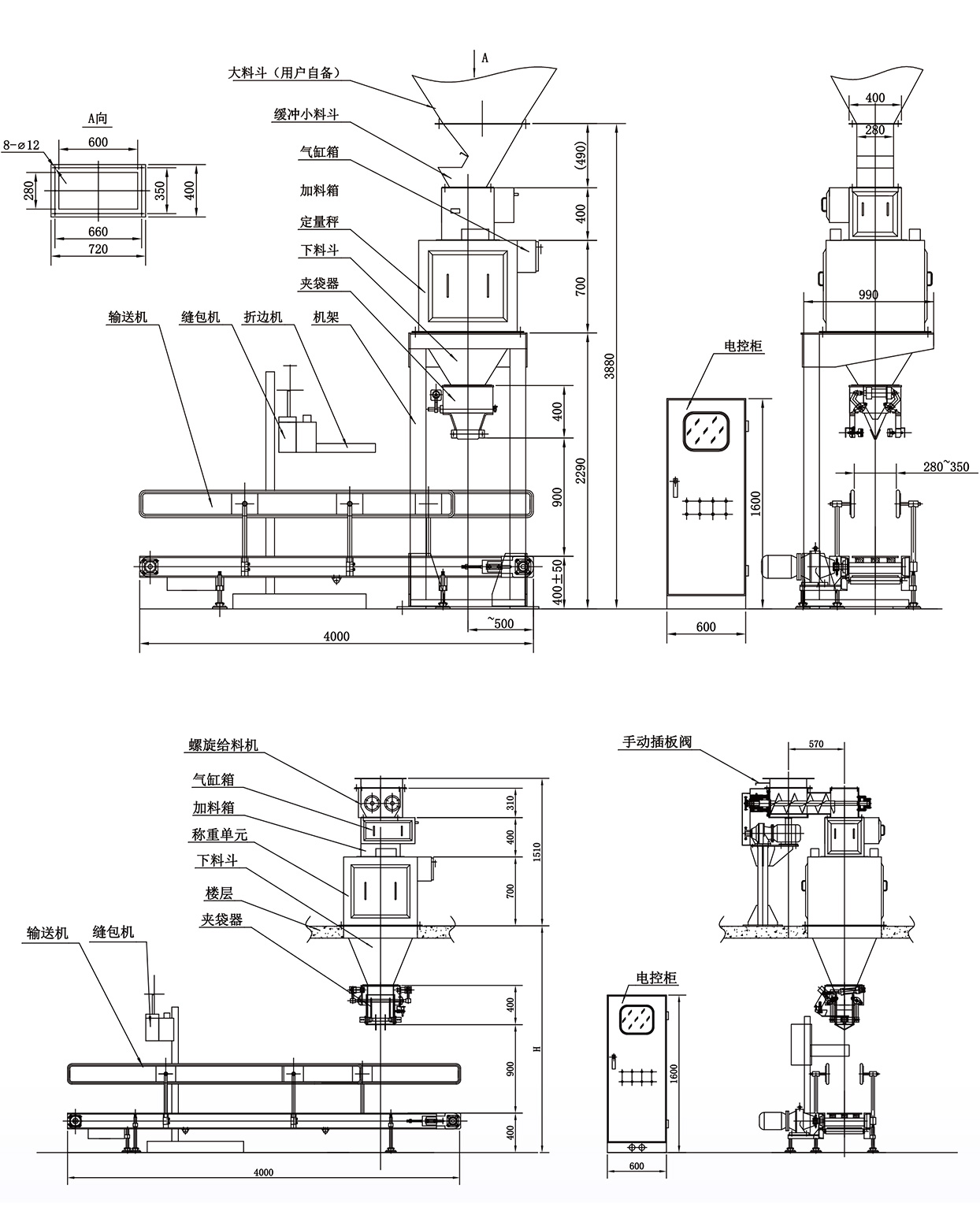

Equipment layout diagram Of Single Scale Packing Machine
