Description Of Robotic Palletizer

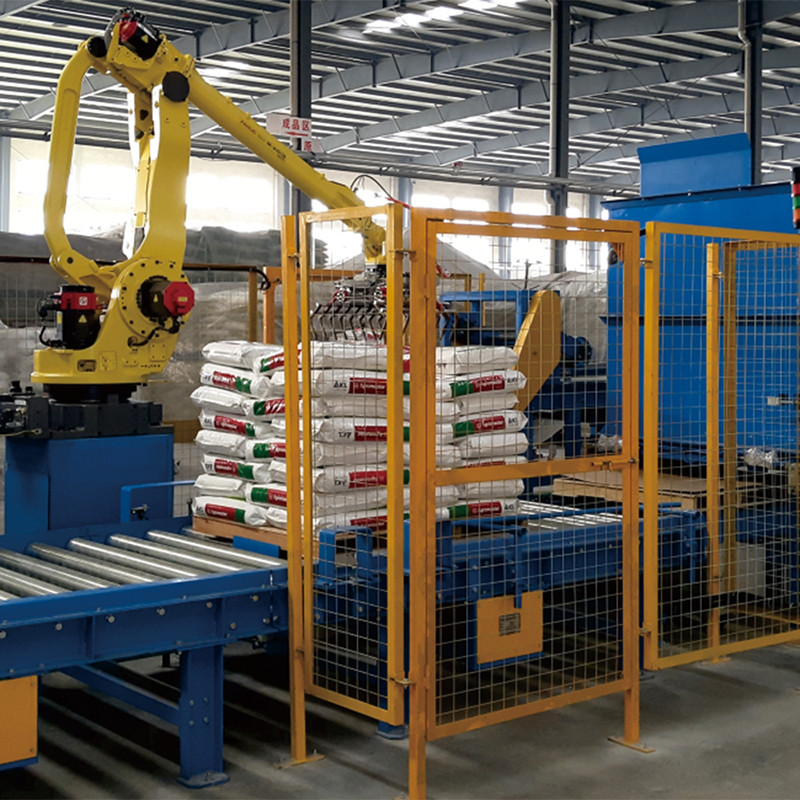

The palletizing robot grabs the bag from the conveyor, places the bag layer by layer on the tray according to the predetermined way, and finally outputs the full stack of the code.
Feature Of Robotic Palletizer
1. Simple structure, small footprint, flexible equipment layout;
2. Low failure rate, stable and reliable, simple maintenance;
3. Flexible grouping method; Suitable for palletizing of various. packaging material bags;
4. Multiple packaging bags can be palletized at the same time, with intelligent sorting function (optional).
Parameter Specification Of Robotic Palletizer
1. Robot: four-axis handling robot
2. Maximum palletizing speed: 1150 bags/hour
3. Bag weight: 20KG ~ 50kg
4. Maximum palletizing size: 2000X2000

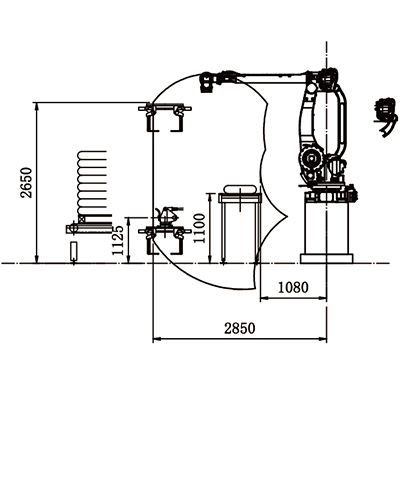

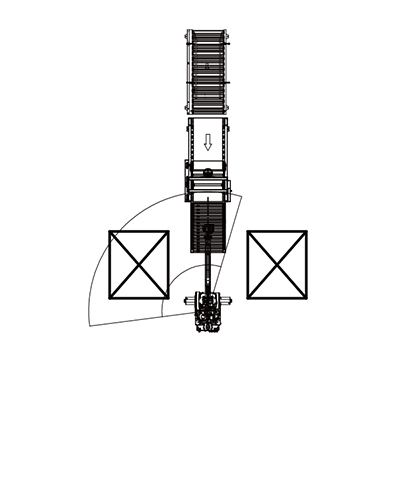

Equipment Layout Diagram Of Robotic Palletizer
|
|
|
|
|
|
|
|
|

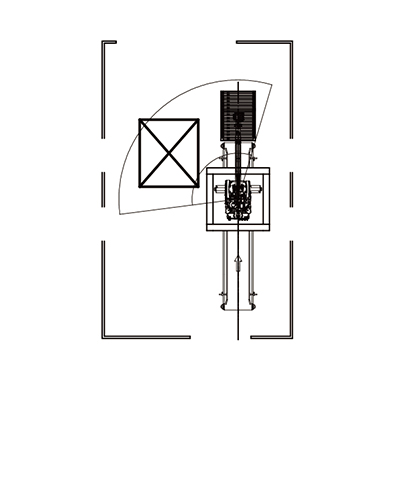

Vertically arranged, the pallets are transported from the pallet warehouse and transported using conveyor belts, which can achieve higher automation. |
|

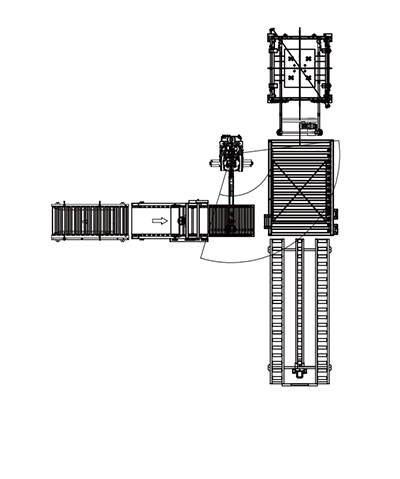

Parallel arrangement, pallets are transported from the pallet warehouse and transported using conveyor belts, which can achieve higher automation. |
|

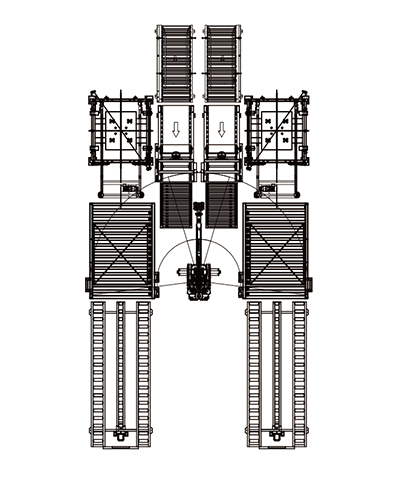

The pallet is transported from the pallet warehouse, and two conveyor belts are combined to form a stacking line, which can smoothly stack products from one line. |
|

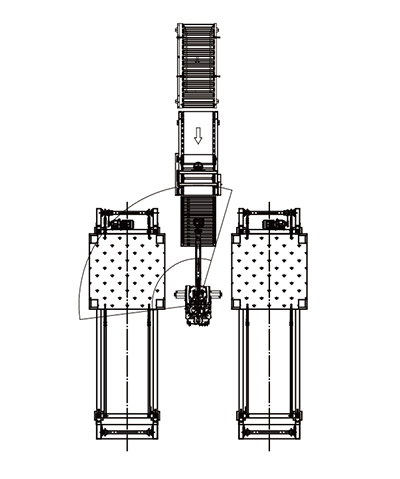

The pallet is transported from the pallet warehouse, and two conveyor belts are combined to form two stacking lines, which can smoothly stack two different types of products from two lines. |
|
|
|
|
|
|
|
|
|

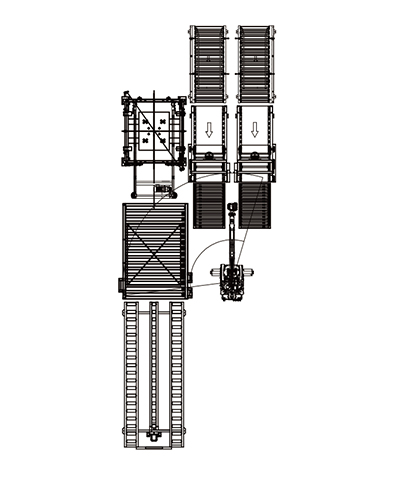

Place the tray directly on the ground, left and right. A maximum of three trays can be placed without any time loss due to tray replacement. |
|

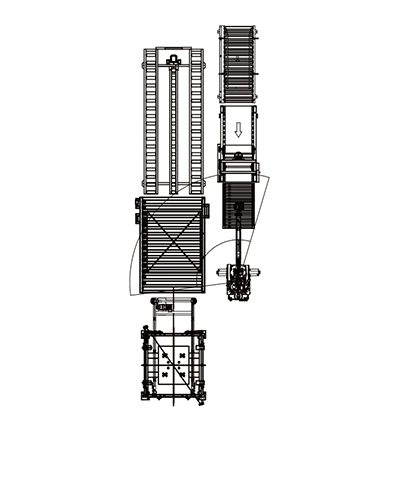

The trays are placed on the conveyor belt to achieve higher automation, and two tray conveyor belts are placed on the left and right sides to achieve higher efficiency. |
|
The conveyor belt for product supply is located at the bottom of the robot, which can minimize the workspace and allow the robot to be installed and used in narrow places. |
|
|
