Milling Grinding: Building a Process Chain

Milling and grinding are both material-removal processes, and on a drawing they can appear interchangeable: a face is a face, and Ra 0.8 µm is Ra 0.8 µm. In production they are not interchangeable at all. Milling removes volume quickly with a defined cutting edge; grinding removes very little material with millions of undefined edges. The milling grinding decision is therefore about which process owns which feature, and in what order.

Get the split right and the part is accurate and cheap. Get it wrong and the shop spends grinding hours removing stock that milling should have taken, or mills a hardened surface that should have been ground.

What Each Process Can Hold

The capability table below is the starting point for every process chain. Values are for production, not for a one-off with a cooperative machinist.

Requirement	CNC milling	CNC grinding	Hard turning
Dimensional tolerance	±0.02 mm routine, ±0.01 mm with care	±0.005 mm routine, ±0.002 mm achievable	±0.005 mm
Roundness	Not the strength of milling	0.002–0.005 mm	0.003–0.005 mm
Surface finish	Ra 1.6 µm routine, Ra 0.8 µm with care	Ra 0.4 µm routine, Ra 0.1 µm achievable	Ra 0.4–0.8 µm
Hardness of workpiece	Up to about 45 HRC with carbide	Any hardness, including 60 HRC and above	45–68 HRC with CBN
Material removal rate	High	Low	Medium
Typical stock removed	Millimetres	0.05–0.3 mm	0.1–0.5 mm
Cost per cm³ removed	Low	High	Medium

The pattern is clear: milling owns volume, grinding owns precision. Any chain that asks grinding to remove more than about 0.3 mm on a hardened part is paying grinding rates for roughing work.

When grinding is not optional

Four situations make grinding mandatory rather than optional:

• Hardened surfaces above 45 HRC where a bore or face must hold IT6 or better. Hard turning can compete on some geometries, but not on interrupted cuts or on parts requiring a specific surface topography.

• Roundness and cylindricity below 0.005 mm, which is beyond what a milling cutter can produce because the tool path and the spindle error are transferred into the surface.

• Sealing and bearing surfaces where the finish has to be free of the cutter marks that create leak paths or bearing noise.

• Thin-wall parts where the low radial force of grinding is the only way to finish without deflecting the part.

Stock Allowance and Sequence

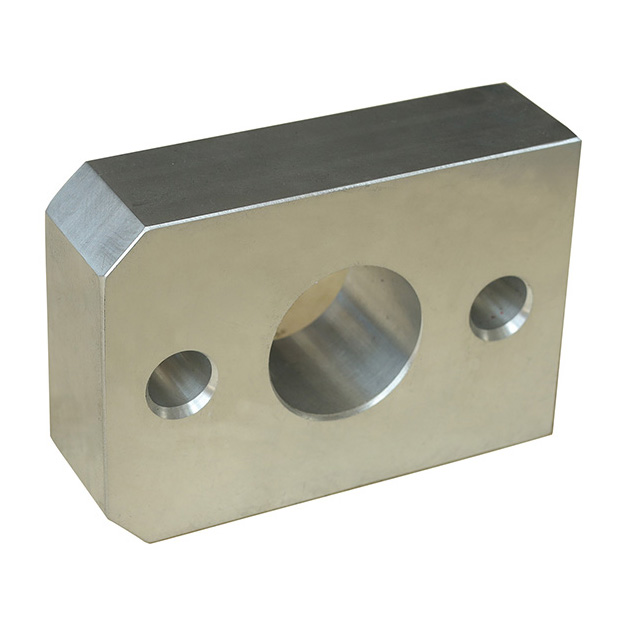

Custom CNC Machining Service

The allowance left for grinding is a decision made during milling, and it is where most process chains lose money. Too little and the part will not clean up after heat treatment distortion; too much and the grinding cycle triples.

Part type	Roughing	Heat treatment	Semi-finish	Grinding allowance
Shaft with bearing seats	Turn, leave 0.6 mm	Harden and temper	Turn to 0.25 mm	0.2–0.3 mm on diameter
Housing bore	Mill or turn, leave 0.8 mm	Stress relief	Bore to 0.2 mm	0.15–0.25 mm on diameter
Flat sealing face	Mill, leave 0.5 mm	Harden	Mill to 0.15 mm	0.1–0.2 mm
Hardened gear blank	Turn, leave 1.0 mm	Harden	Turn to 0.3 mm	0.25–0.4 mm

Heat treatment distortion is what sets the lower bound. A shaft that distorts 0.15 mm in quench needs at least that much allowance plus a margin, or the bearing seat will be soft on one side after grinding.

The sequence that avoids double handling

For a hardened shaft with two bearing seats and a keyway, the chain that works is: turn the profile leaving grinding allowance, mill the keyway and any flats, harden and temper, grind the bearing seats, then finish any thread or bore that cannot survive hardening. Grinding after the keyway is cut means the grinding wheel has to jump the keyway, which is fine on a cylindrical grinder with a wide enough wheel and a slow traverse.

For a housing with a hardened bore and a soft flange, the reverse applies: finish the flange by milling while the part is soft, then harden the bore region only if the design allows selective hardening. Through-hardening the whole housing forces the flange to be ground as well, which is an expensive way to hold a flatness that milling could have delivered.

Wheel Selection and Dressing

On the grinding side, the wheel is the process. Three families cover most work.

Aluminum oxide is the general-purpose choice for carbon and alloy steels. It is forgiving, cheap and works well at moderate hardness.

Silicon carbide suits cast iron, non-ferrous metals and carbide, where the abrasive has to be sharper and harder than the work.

CBN (cubic boron nitride) suits hardened steels above 50 HRC and high-volume production. It holds form far longer than aluminum oxide, which reduces dressing frequency and keeps size control tighter across a batch.

Dressing is what most shops under-invest in. A wheel that is loaded or glazed will burn the part before it shows any size error. A sharp dress, a controlled infeed and enough coolant at the contact zone are the three variables that separate a stable grinding process from one that produces a scrap rate the shop cannot explain.

What a stable dress looks like

A freshly dressed wheel sounds different: a light, even cut with no spark burst at the leading edge. If the first pass after a dress throws a shower of sparks, the dress was too light and the wheel is still dull. Dressing depth of 0.02-0.05 mm per pass, at the wheel manufacturer's traverse rate, restores the form without removing more abrasive than necessary.

Burn, Cracks and the Checks That Catch Them

Grinding burn is a subsurface tempering effect. The part measures correctly and fails in service, which is why it is the most expensive defect in the process. Chuangling keeps nital etch inspection in the control plan for ground surfaces that carry a fatigue load.

Symptom	Likely cause	Countermeasure
Blue or straw discoloration	Insufficient coolant, too fast infeed	Increase coolant flow, reduce infeed per pass
Fine surface cracks	Rapid heating and quenching by coolant	Reduce stock removal per pass, use softer wheel
Chatter marks	Wheel imbalance, worn spindle bearing, wrong speed	Balance the wheel, dress, adjust speed
Taper or size drift	Wheel wear, thermal growth	In-process gauging, more frequent dressing
Loading (wheel glazed)	Soft workpiece, hard wheel, low speed	Open the wheel structure, increase speed

Nital etch inspection reveals tempering effects that visual inspection misses, and it belongs in the control plan for any ground surface that carries a fatigue load.

The Economics of the Split

A milling grinding chain is cheaper than an all-grinding chain for the same tolerance, and more accurate than an all-milling chain. The split point moves with volume: at low volume, hard turning can replace grinding on simple geometries and save a setup; at high volume, CBN grinding with in-process gauging holds size without operator intervention and wins on cost per part. Chuangling quotes the chain as a whole, with the milling allowance and the grinding cycle stated separately, so the customer can see which operation the cost sits in.

Chuangling runs milling, turning and grinding in the same plant, which means the allowance decision is made by the people who will grind the part rather than by a supplier who only sees the milling operation. That is the practical value of a single process chain: the stock left for grinding is agreed before the first roughing cut, and the finished part carries both the geometry and the surface the drawing asks for. Chuangling states that allowance on the quotation so the customer can compare like with like when another supplier quotes only the milling hours.
